AWS Cloudwatch Metric Stream

AWS Cloudwatch Metric Stream enables customers to send their Cloudwatch metrics to Levitate.

Pre-requisites

Create a cluster on Levitate dashboard and copy the Write HTTP Endpoint URL from the Cloudstream section.

Levitate Cluster Cloudstream settings

Setting up required IAM policy

info

Ensuring your AWS Identity and Access Management (IAM) user account has access permissions is crucial. The following access policy is specifically crafted to enable actions related to creating Kinesis Data Streams and CloudWatch Metric Streams.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "cloudwatch:StartMetricStreams",
                "cloudwatch:PutMetricStream",
                "cloudwatch:GetMetricStream",
                "cloudwatch:GetMetricData",
                "cloudwatch:ListMetrics",
                "cloudwatch:ListMetricStreams"
            ],
            "Resource": [
                "*"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "firehose:PutRecord",
                "firehose:CreateDeliveryStream",
                "firehose:DescribeDeliveryStream",
                "firehose:PutRecordBatch",
                "firehose:UpdateDestination",
                "firehose:ListDeliveryStreams"
            ],
            "Resource": [
                "*"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:ListAllMyBuckets",
                "s3:CreateBucket",
                "s3:GetBucketLocation",
                "s3:GetObject",
                "s3:ListBucket",
                "s3:ListBucketMultipartUploads",
                "s3:PutObject"
            ],
            "Resource": [
                "arn:aws:s3:::*"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "iam:CreateRole",
                "iam:CreatePolicy",
                "iam:AttachRolePolicy",
                "iam:CreatePolicyVersion",
                "iam:DeletePolicyVersion",
                "iam:PassRole"
            ],
            "Resource": [
                "arn:aws:iam::<account_id>:policy/*",
                "arn:aws:iam::<account_id>:role/*"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "logs:CreateLogGroup",
                "logs:CreateLogStream"
            ],
            "Resource": [
                "arn:aws:logs:<region>:<account_id>:log-group:*:log-stream:*"
            ]
        }
    ]
}

Creating an AWS Kinesis Delivery Stream

Open the AWS Kinesis homepage (console.aws.amazon.com/kinesis/home)
Open the left sidebar (click on the ☰ icon, if it is not expanded already)
Click on Delivery Streams

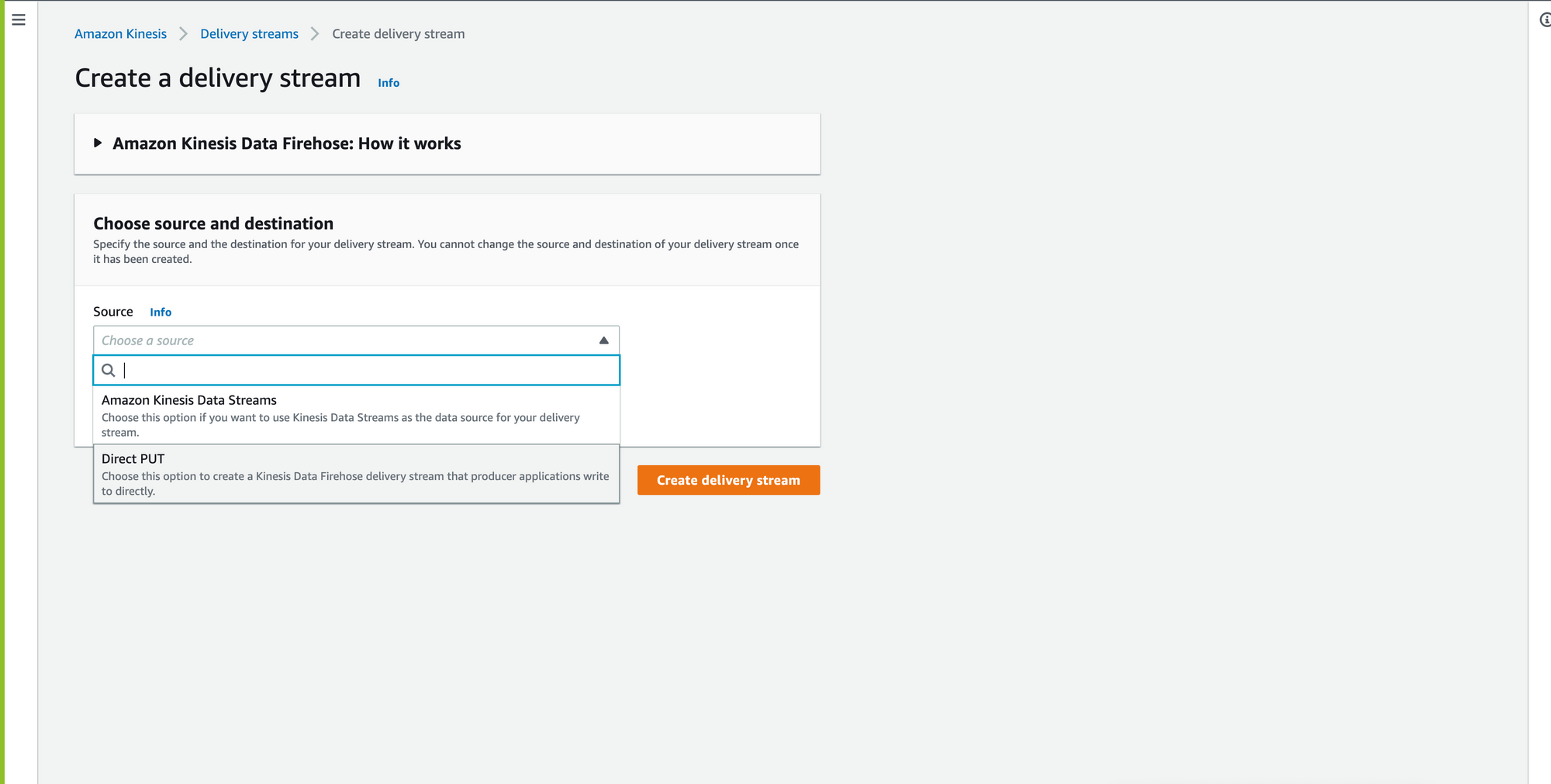

Click on Create delivery stream
Choose Direct PUT
Delivery stream name = last9-$your_organization_name
Set the copied write HTTP Endpoint URL from the Levitate cluster as an HTTP endpoint.

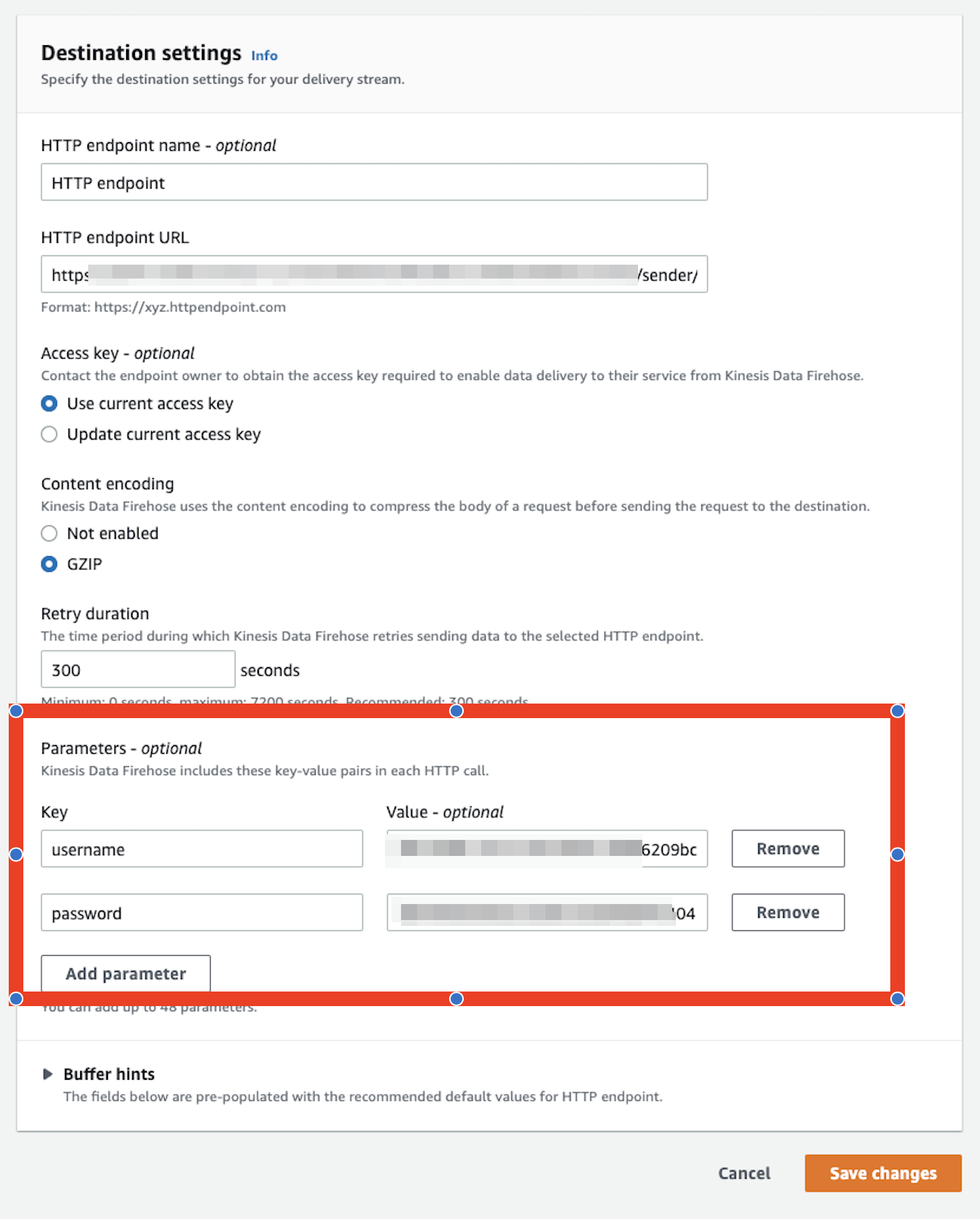

Add username and password. Use the cluster_id from the Levitate cluster page as username. Create a Write Token and use it as password.
Choose or create an S3 bucket to save data the stream failed to deliver.
Click on Create delivery stream

Sending data from Cloudwatch to the delivery stream

Open the Cloudwatch console and click on Metrics -> Streams
Click on Create metric stream
Choose All metrics to send all Cloudwatch metrics. Optionally, you can also select specific namespace metrics you want to send by using the Select namespaces =.
Ensure that you use the delivery stream created in the earlier step and that the output format is Opentelemetry 0.7.
Enter the Metric stream name as last9-$your_organization_name - click on Create metric stream.

Verification

Once the Cloudwatch metric stream is enabled, it sends metrics with the prefix amazonaws_com_AWS prefix. They can be observed in the Hosted Grafana in the Explore tab in Levitate.

Troubleshooting

Please get in touch with us on Discord or Email if you have any questions.
